Automated Dispensing Axis Gearhead Selection
Guidance for selecting gearheads in dispensing and dosing systems where smooth motion and repeatable control are critical.
Target Buyer:OEM teams prioritizing repeatability, process stability, and compact system architecture.
Solution Highlights
- Smooth low-speed motion performance
- Compact packaging for multi-axis heads
- Repeatability support for process consistency
Common Use Cases
- Adhesive and sealant dispensing lines
- Electronics dosing equipment
- Laboratory liquid handling automation
Implementation Focus
- Low-speed smoothness and servo tuning behavior
- Positioning repeatability across cycle variations
- Integration with controller and process recipes
Application Evaluation Matrix
| Evaluation Metric | Typical Range | Buyer Relevance |
|---|---|---|
| Low-Speed Stability | No visible hunting in target RPM band | Directly impacts dispensing quality and consistency. |
| Positioning Repeatability | Process-defined tolerance window | Ensures repeatable output across production cycles. |
Risk and Mitigation
- Ignoring controller-gearhead interaction: Validate drive tuning with representative process motion recipes.
Application Decision Worksheet
This worksheet helps cross-functional teams convert scenario assumptions into measurable evaluation gates before RFQ lock.
| Decision Gate | Why It Matters | Input to Send | Exit Condition |
|---|---|---|---|
| Low-Speed Stability | Directly impacts dispensing quality and consistency. | Motion profile at dispensing speed range | Mitigation agreed: Validate drive tuning with representative process motion recipes. |
| Positioning Repeatability | Ensures repeatable output across production cycles. | Precision target and process tolerance | Mitigation agreed: Validate drive tuning with representative process motion recipes. |
Recommended first-thread payload: motion profile, transient peaks, duty cycle, interface revision, and pilot schedule.
Pilot Validation Handoff Steps
- Freeze application assumptions and output metrics before sampling.
- Confirm acceptance evidence format for each critical metric.
- Capture commissioning risks and assign mitigation owner per side.
- Promote to MP only after sample evidence and delivery plan match.

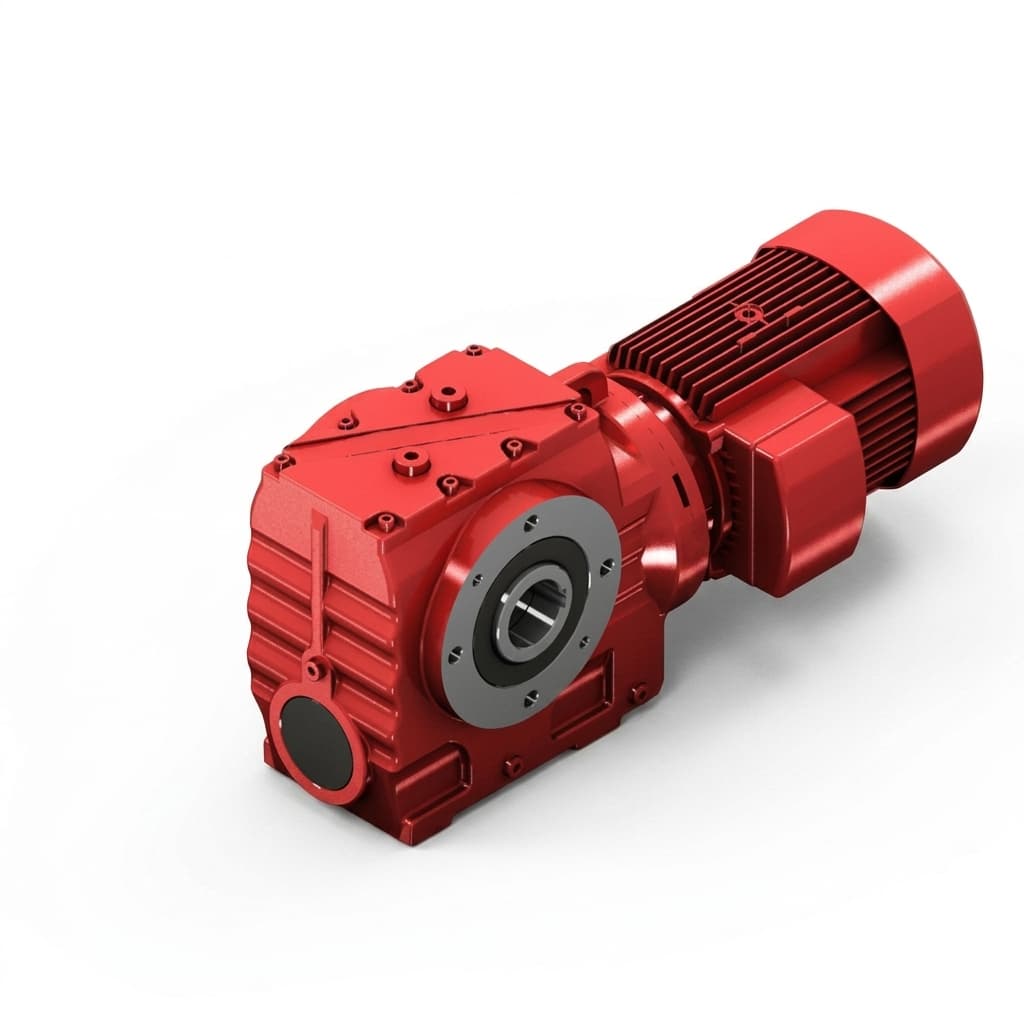

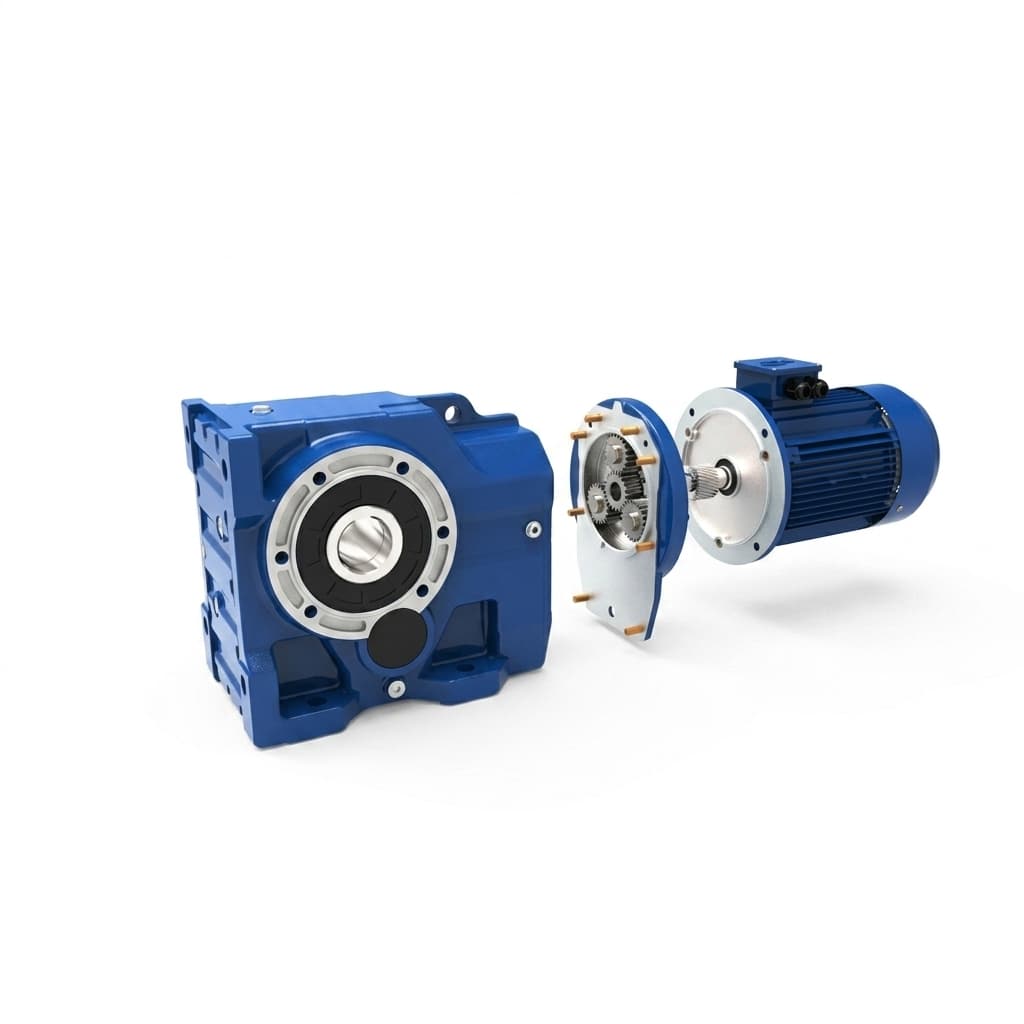

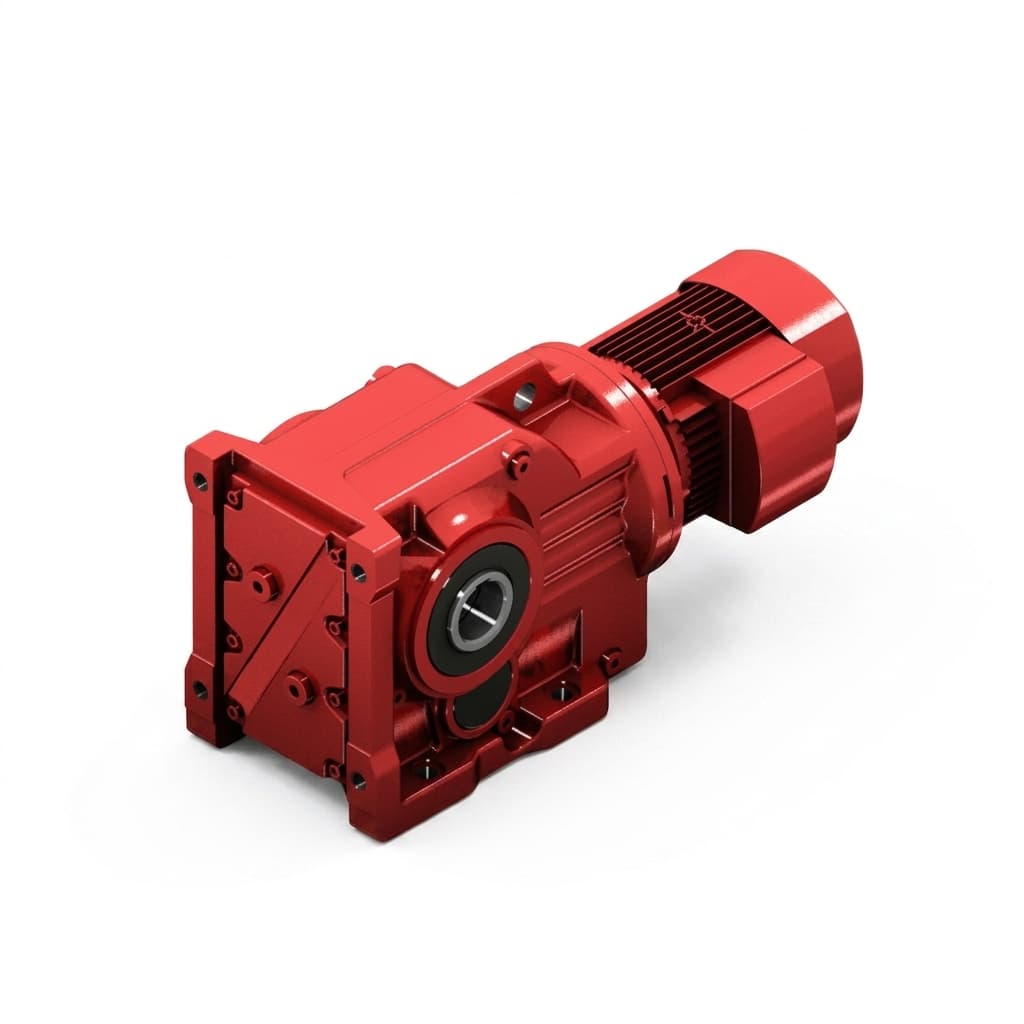

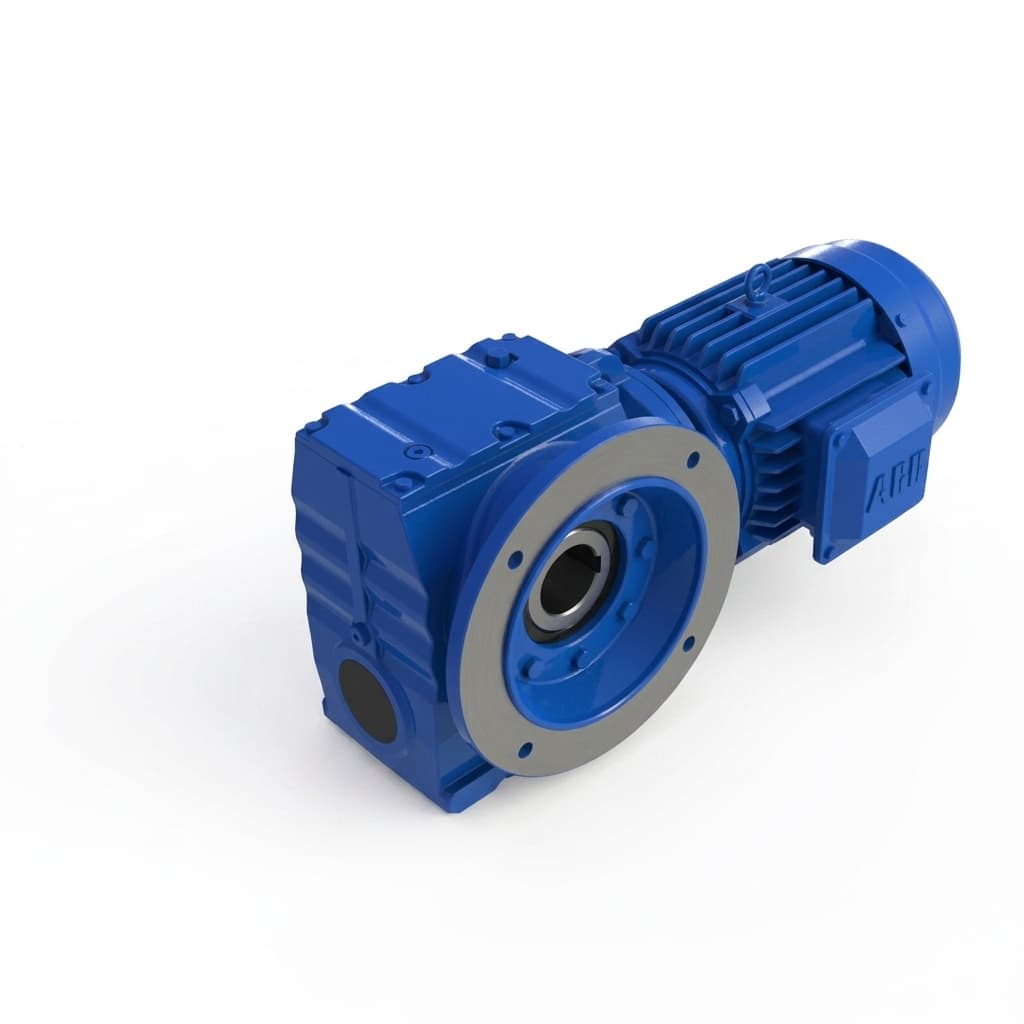

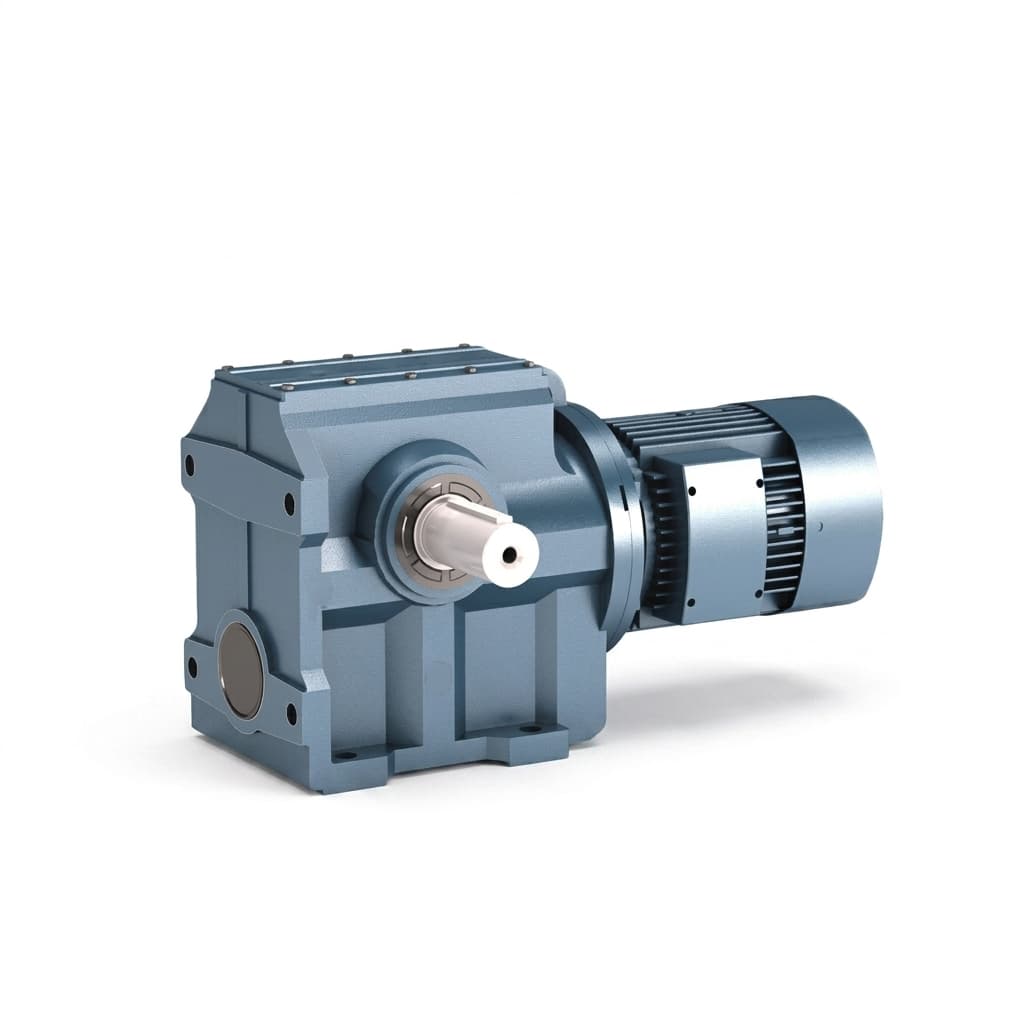

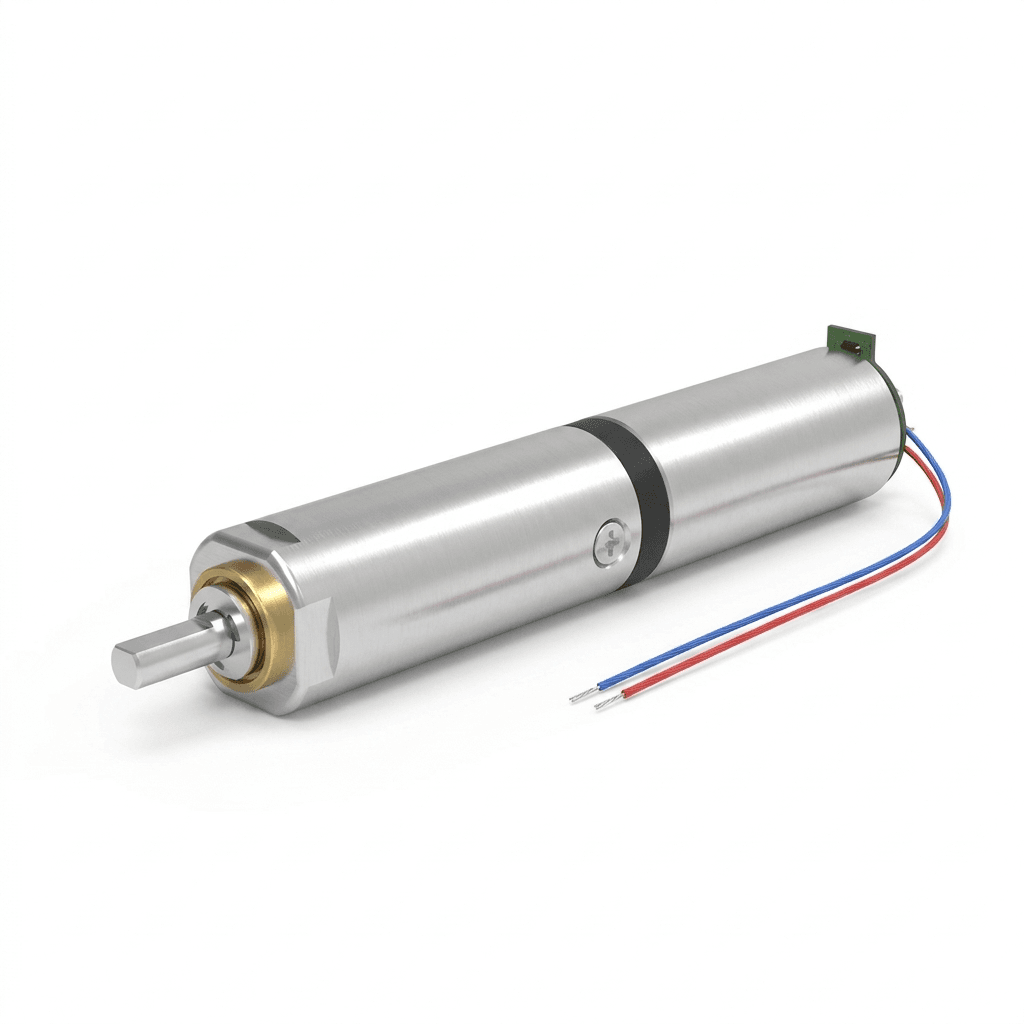

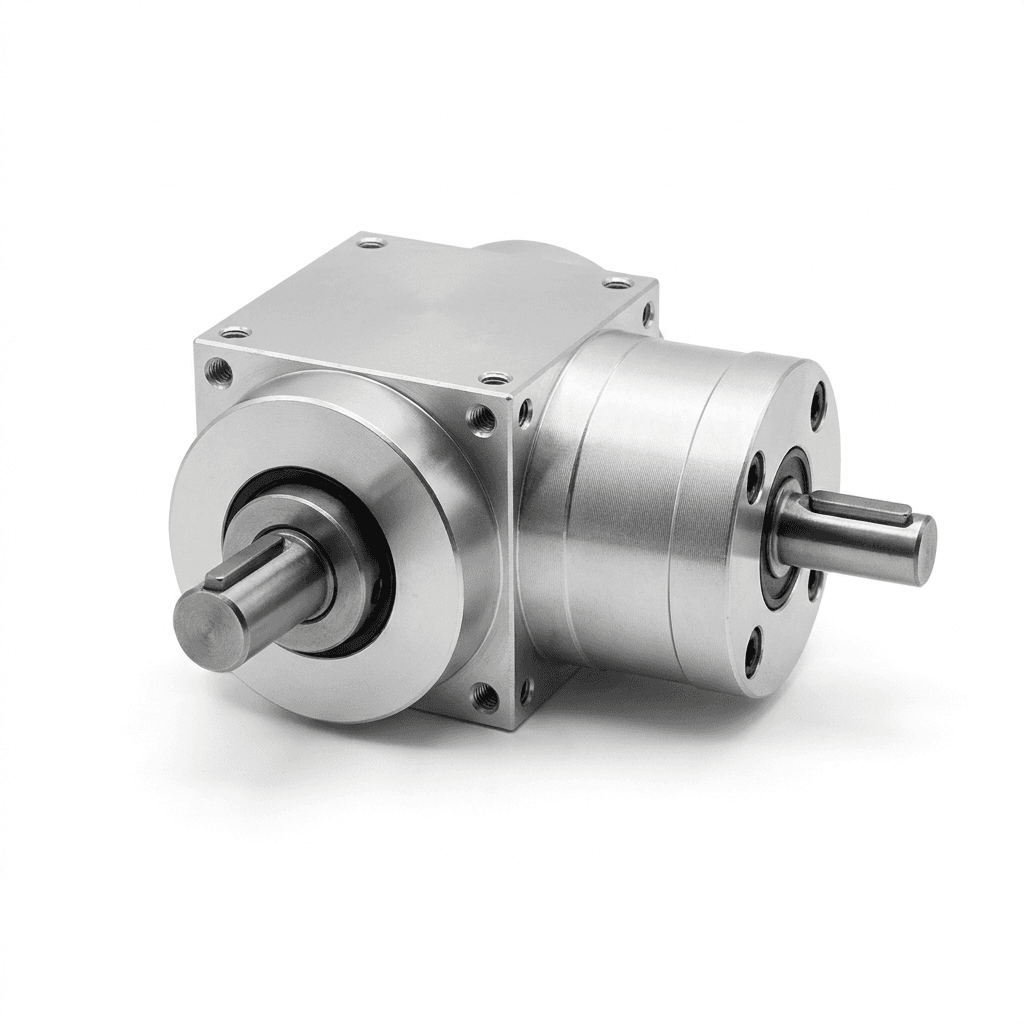

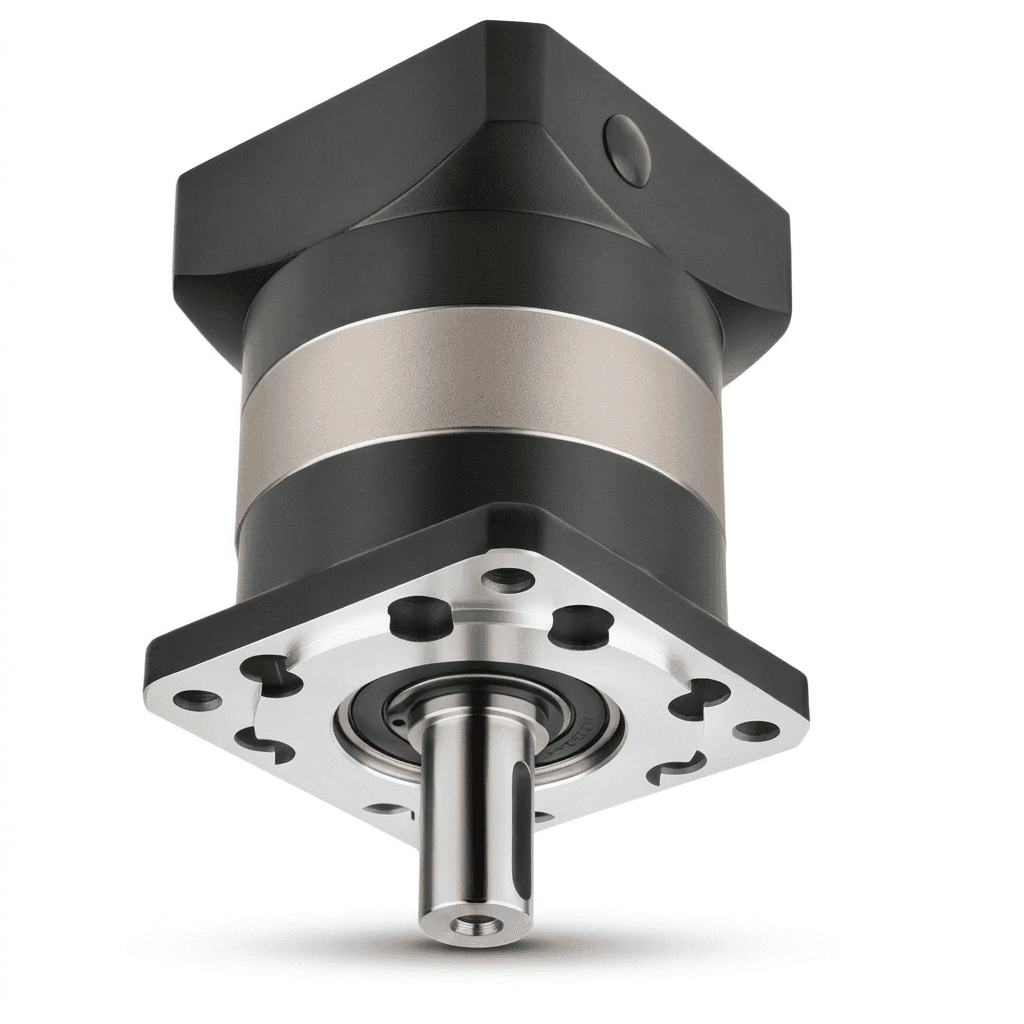

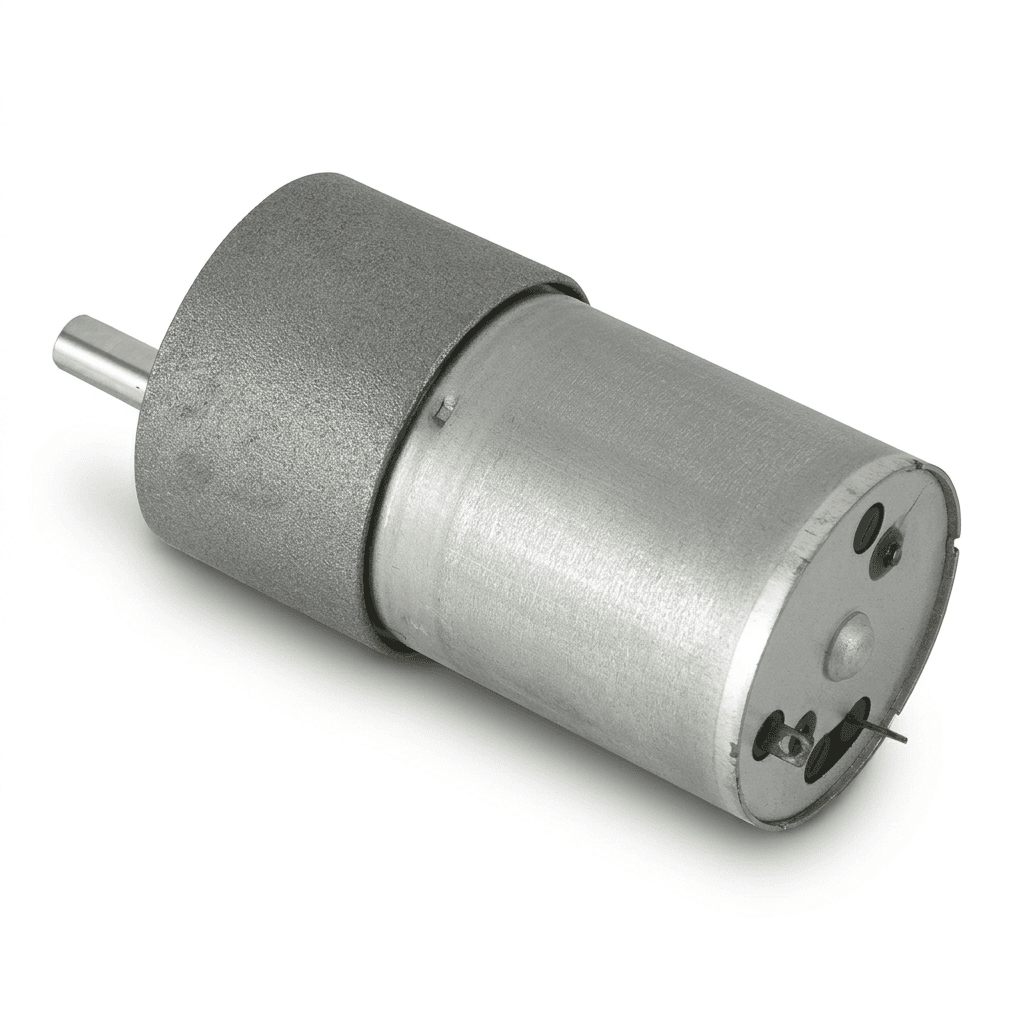

Recommended Products
Buyer FAQ
Can we request pre-matched motor + gearhead combinations?
Yes. We support pre-match recommendations to reduce integration cycle time.
