RFQ Checklist
- Nominal and peak torque with duty cycle details
- Input motor data and controller constraints
- Expected life target and maintenance policy
- Destination and delivery schedule requirements
← Back to Products
High-Torque Planetary Gearheads
Heavy-duty planetary gearheads for demanding industrial motion where high torque density and stable lifecycle performance are mandatory.
Target Buyer:For OEM buyers with high-load, high-duty applications and strict reliability targets.
OEM Precision Standard
Capability Highlights
- High torque capacity with robust gear train design
- Optimized for demanding industrial duty cycles
- Configurable ratios for dynamic performance targets
Typical Applications
- Rotary index tables and positioning modules
- Heavy-load pick-and-place systems
- Industrial automation with high inertia loads
Engineering Focus
- Shock load margin and peak torque validation
- Gearhead lifetime estimation under target cycle profile
- Drive-side tuning for resonance and settling control
Key Evaluation Matrix
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Peak Torque Capability | 2.5x to 3.5x nominal | Peak capacity is critical for acceleration bursts and shock events. |
| Design Life | Up to 20,000 h (application dependent) | Life estimate supports maintenance planning and total-cost decisions. |
Risk Controls
- Underestimating shock load events: Include startup, emergency stop, and jam scenarios in torque evaluation.
- Mismatch between drive tuning and mechanical stiffness: Run coupled servo tuning review with mechanical compliance assumptions.
Product Selection Worksheet
Use this worksheet in your internal review to convert assumptions into explicit RFQ inputs before supplier quotation.
| Decision Gate | Buyer Question | Evidence to Request | Release Condition |
|---|---|---|---|
| Peak Torque Capability | Peak capacity is critical for acceleration bursts and shock events. | Nominal and peak torque with duty cycle details | Risk control agreed: Include startup, emergency stop, and jam scenarios in torque evaluation. |
| Design Life | Life estimate supports maintenance planning and total-cost decisions. | Input motor data and controller constraints | Risk control agreed: Run coupled servo tuning review with mechanical compliance assumptions. |
Minimum first-email payload: motor model, load profile, target ratio range, acceptance threshold, and sample quantity timeline.
Sample-to-MP Handoff Checklist
- Freeze drawing and requirement baseline before sample release.
- Record pass/fail evidence for the same metrics used in quotation.
- Log all engineering changes with revision ownership on both sides.
- Approve mass-production release only after acceptance evidence and delivery milestones are aligned.

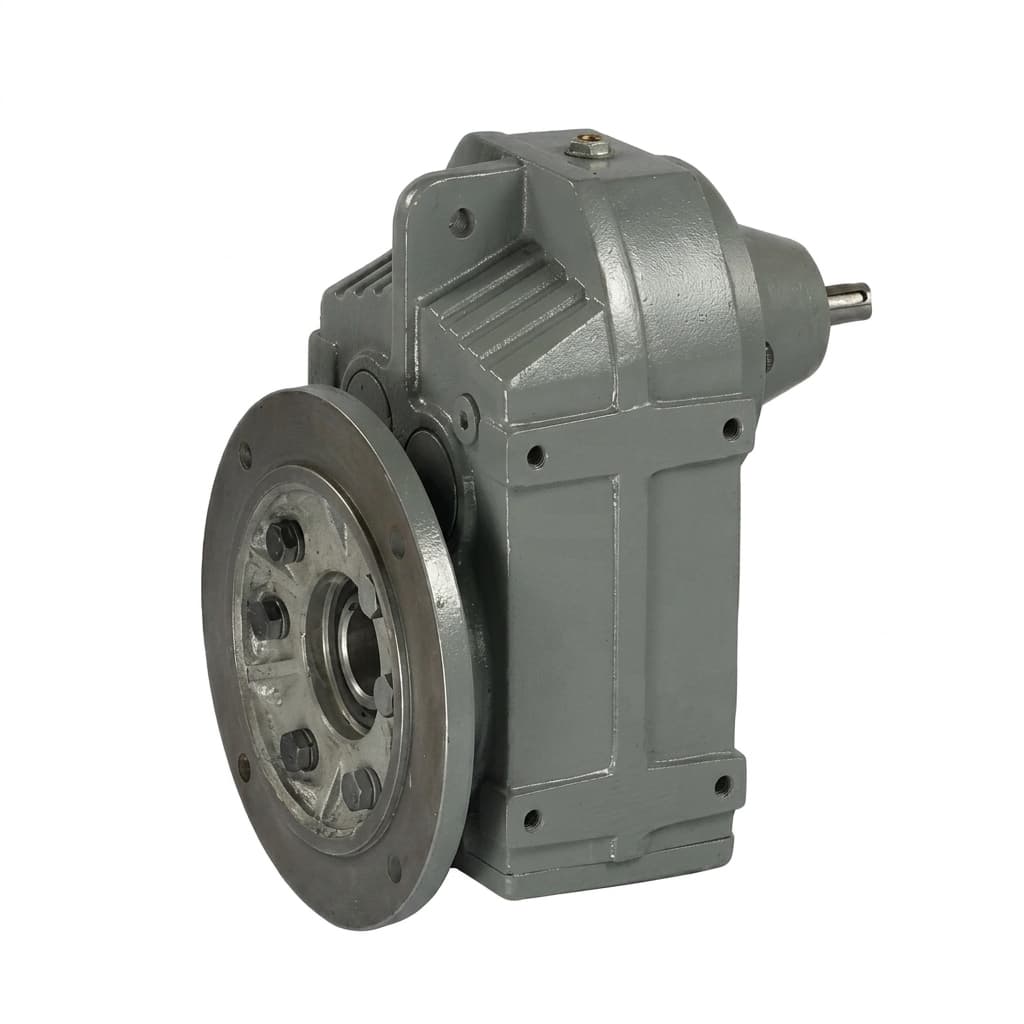

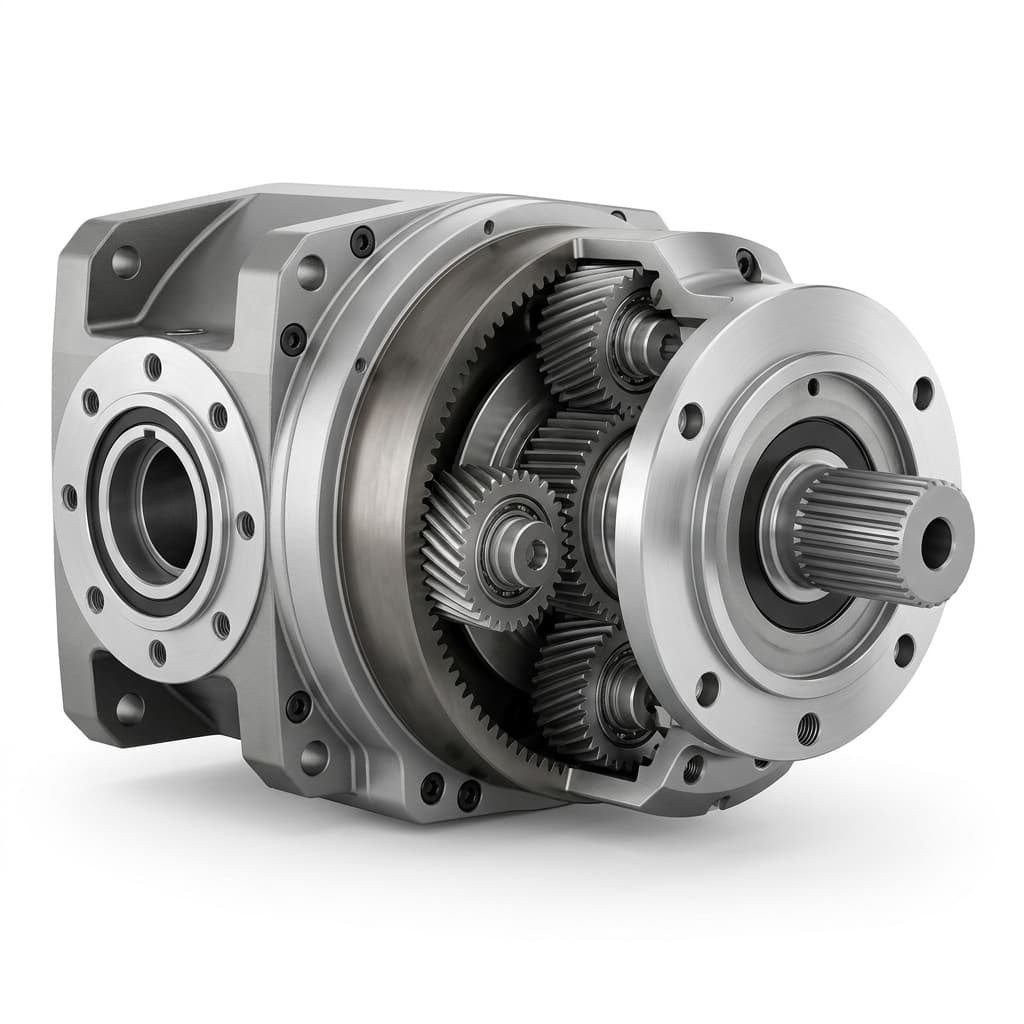

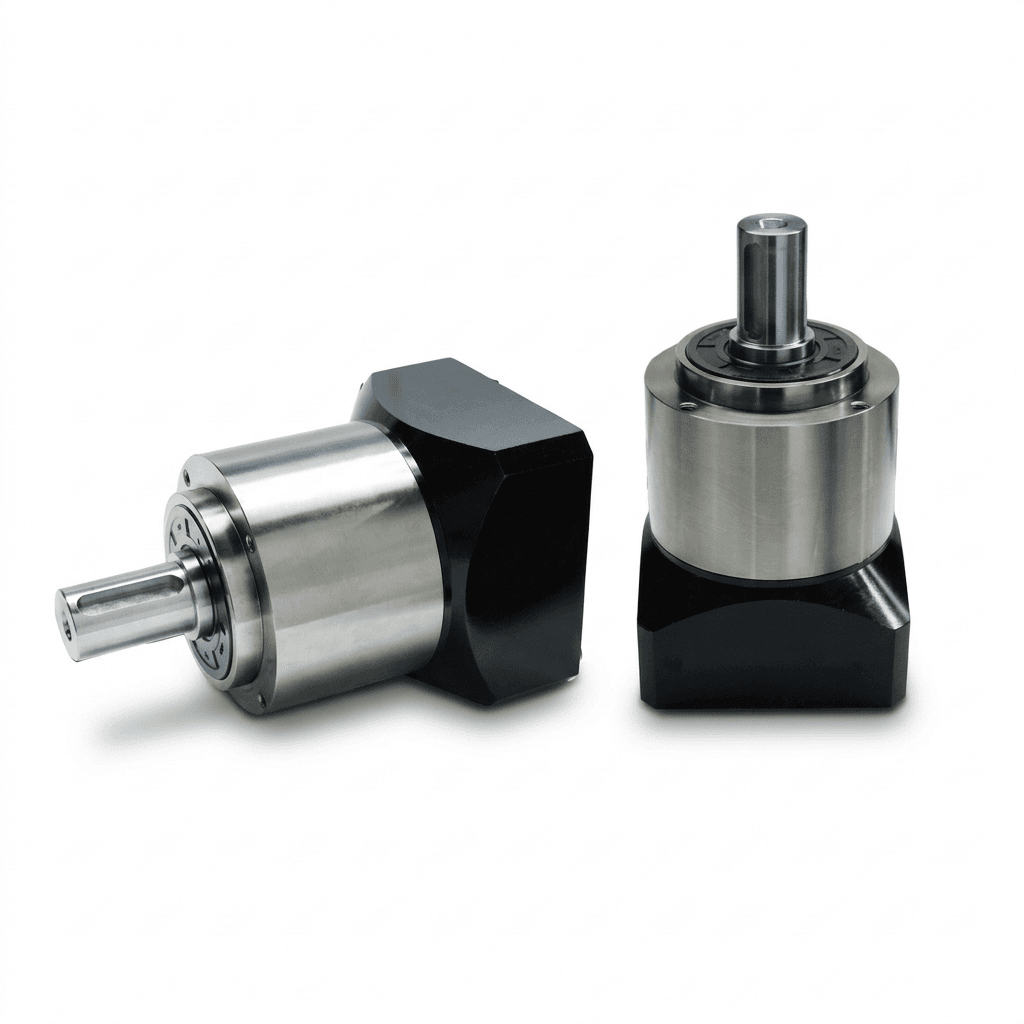

Product Gallery
Buyer FAQ
Can you support OEM customization on high-torque gearheads?
Yes. We support ratio, interface, shaft details, and program-level customization for OEM projects.
Do you provide sample validation support before MP release?
Yes. We help define measurable acceptance criteria for prototype and pilot stages.
