RFQ Preparation Checklist
- Payload and kinematic envelope assumptions
- Target cycle time and acceleration profile
- Repeatability target and allowable backlash window
- Motor platform and controller baseline
← Back to Applications
Delta Robot Gearhead Integration
Application guide for high-speed delta robot axes, with emphasis on inertia behavior, repeatability, and stable commissioning.
Target Buyer:Robot OEM teams balancing cycle-time pressure, repeatability targets, and commissioning risk.
Solution Highlights
- High-speed axis stability with controlled backlash
- Inertia and stiffness checks for pick-and-place motion
- Sample validation criteria before production freeze
Common Use Cases
- Packaging pick-and-place cells
- Food and pharmaceutical handling lines
- High-throughput assembly automation
Implementation Focus
- Axis-level inertia ratio and settling behavior
- Backlash and torsional stiffness impact on repeatability
- Thermal stability under continuous high-cycle operation
Application Evaluation Matrix
| Evaluation Metric | Typical Range | Buyer Relevance |
|---|---|---|
| Inertia Ratio | Recommended <= 5:1 | Improves servo tuning robustness and reduces oscillation risk at high speed. |
| Repeatability | Application-specific tolerance window | Directly affects throughput yield and process consistency. |
Risk and Mitigation
- Ignoring full-arm coupled dynamics: Evaluate inertia and resonance at complete mechanism level rather than isolated component estimates.
Application Decision Worksheet
This worksheet helps cross-functional teams convert scenario assumptions into measurable evaluation gates before RFQ lock.
| Decision Gate | Why It Matters | Input to Send | Exit Condition |
|---|---|---|---|
| Inertia Ratio | Improves servo tuning robustness and reduces oscillation risk at high speed. | Payload and kinematic envelope assumptions | Mitigation agreed: Evaluate inertia and resonance at complete mechanism level rather than isolated component estimates. |
| Repeatability | Directly affects throughput yield and process consistency. | Target cycle time and acceleration profile | Mitigation agreed: Evaluate inertia and resonance at complete mechanism level rather than isolated component estimates. |
Recommended first-thread payload: motion profile, transient peaks, duty cycle, interface revision, and pilot schedule.
Pilot Validation Handoff Steps
- Freeze application assumptions and output metrics before sampling.
- Confirm acceptance evidence format for each critical metric.
- Capture commissioning risks and assign mitigation owner per side.
- Promote to MP only after sample evidence and delivery plan match.

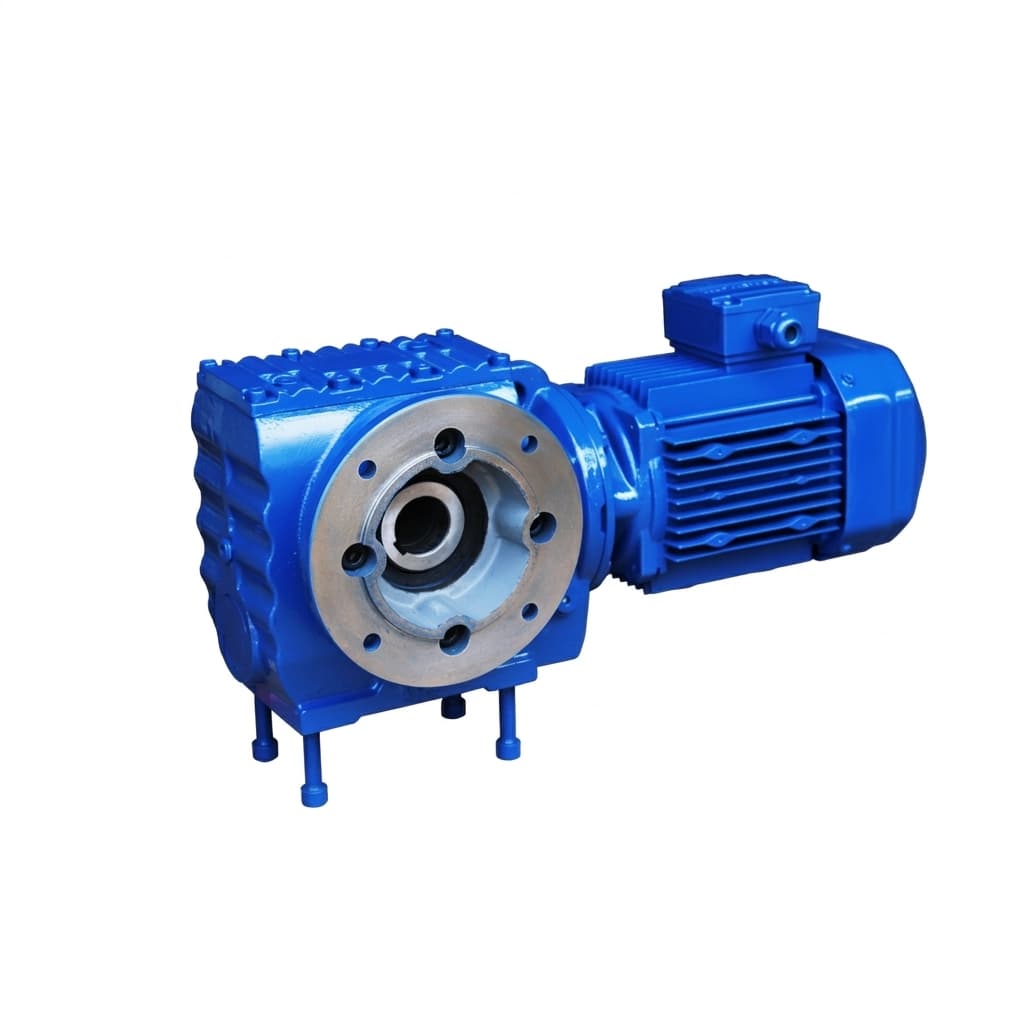

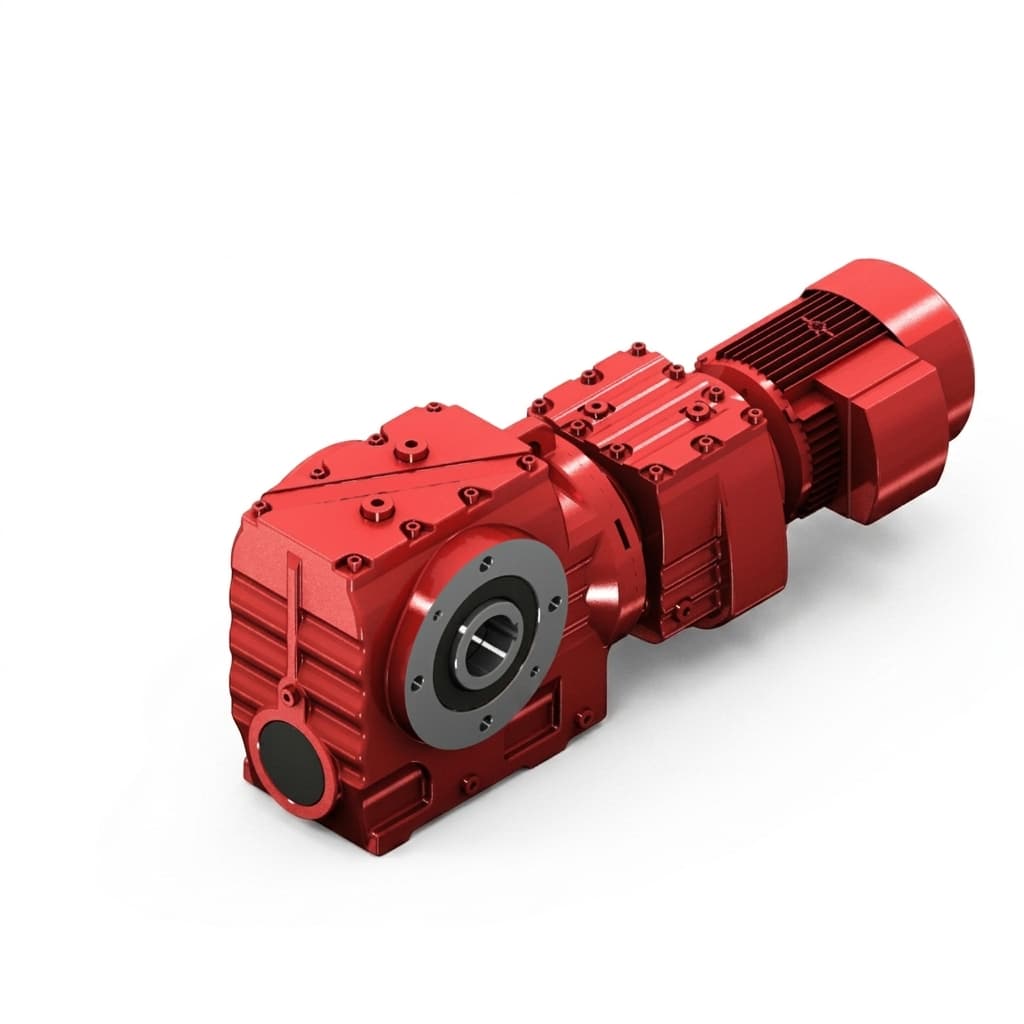

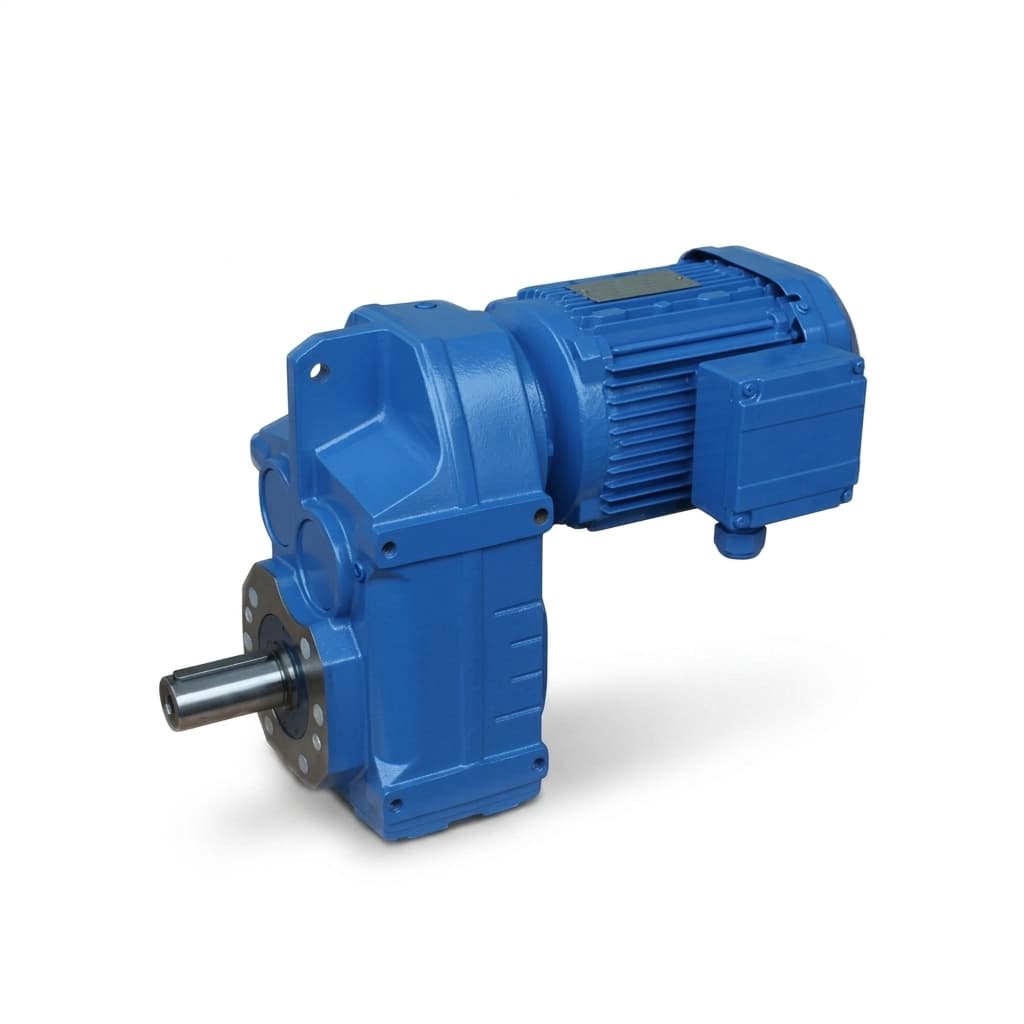

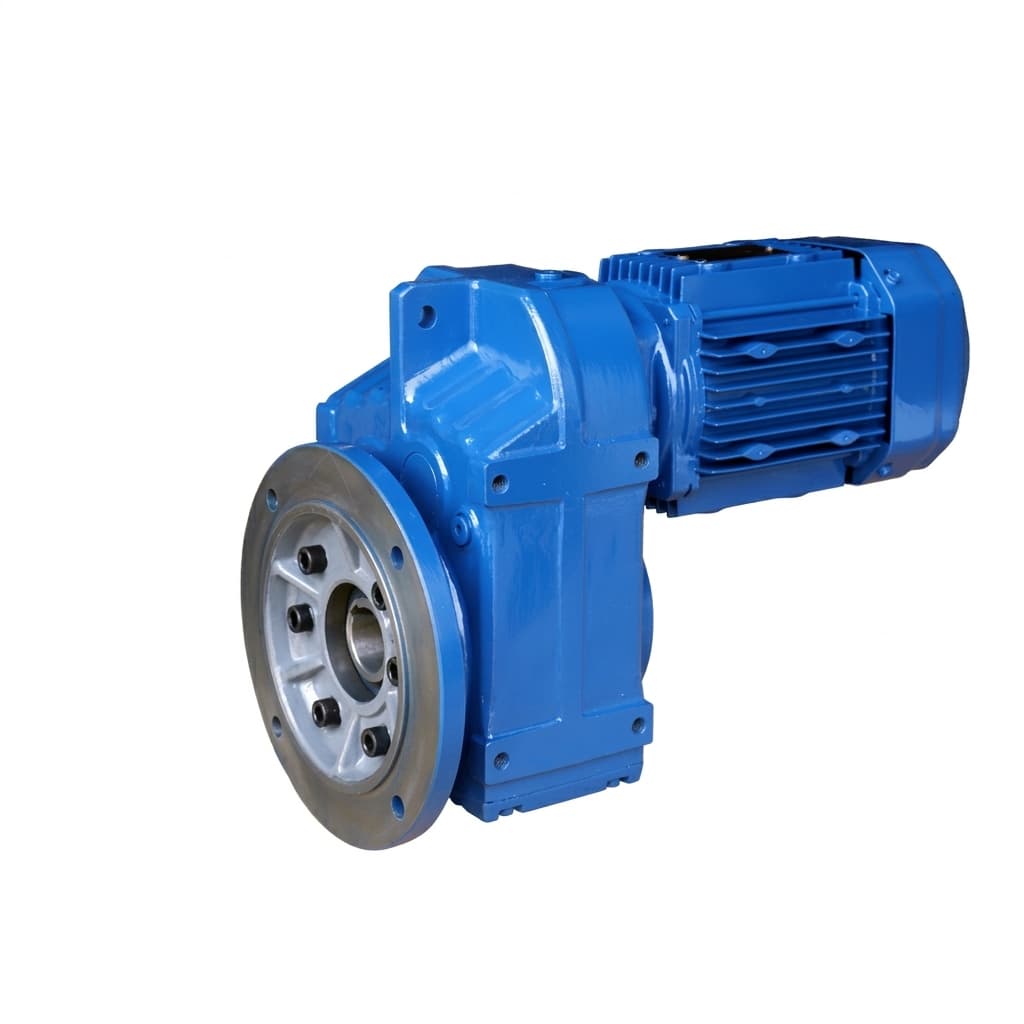

Recommended Products
Buyer FAQ
Can you support early sizing before robot kinematics are fully frozen?
Yes. We can provide preliminary ratio and interface guidance, then refine after kinematics lock.
