Start from your motor frame size and move to fit-check, sizing, and RFQ-ready requirements with less iteration.
Each page below is built for engineering and sourcing alignment: mechanical fit, performance assumptions, and sample validation gates for NEMA 17, 23, 34, and 42 programs.
Compatibility guidance for NEMA 17 motor programs requiring compact planetary gearheads with stable integration and repeatable sample fit.
OEM teams targeting compact motion packages with tight space and precision constraints.
Selection and compatibility framework for NEMA 23 motor integrations balancing torque density, precision, and project lead-time.
Buyers needing a practical balance between compact size and higher torque output in volume projects.
Compatibility and sizing guidance for NEMA 34 programs requiring higher torque capacity, robust interfaces, and controlled lifecycle risk.
OEM teams prioritizing torque margin, durability, and predictable commissioning outcomes.
Project-level compatibility support for NEMA 42 motor integrations in heavy-duty systems that demand high torque, structural robustness, and delivery control.
Procurement and engineering teams running high-power programs with strict reliability and delivery expectations.
| Frame Path | Primary Focus | Key Metric | Why It Matters |
|---|---|---|---|

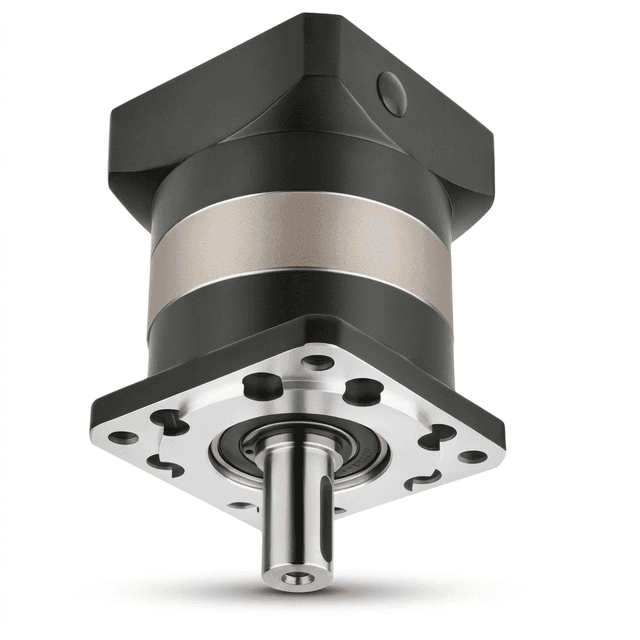

| NEMA 17 Gearhead Compatibility | OEM teams targeting compact motion packages with tight space and precision constraints. | Input Interface Match: Pilot + bolt pattern pass on first sample | Early interface match reduces prototype loop time and prevents adapter rework. |

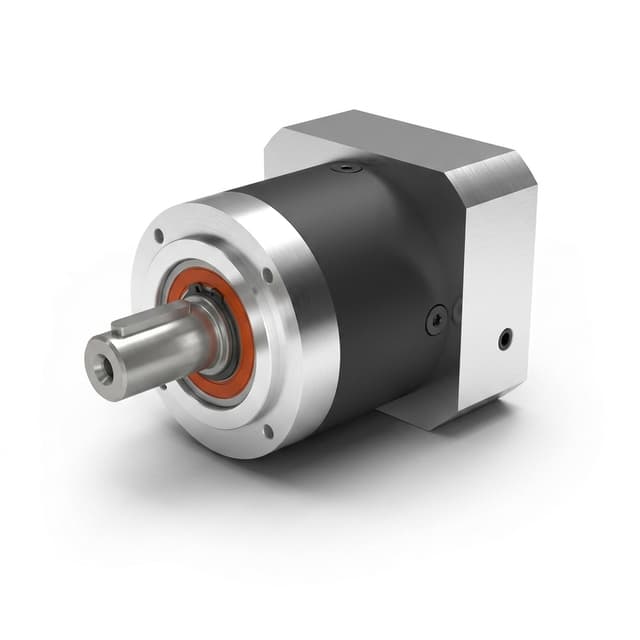

| NEMA 23 Gearhead Compatibility | Buyers needing a practical balance between compact size and higher torque output in volume projects. | Ratio Selection Window: Project-specific sizing by torque-speed profile | Right ratio choice avoids late tuning instability and unnecessary cost. |

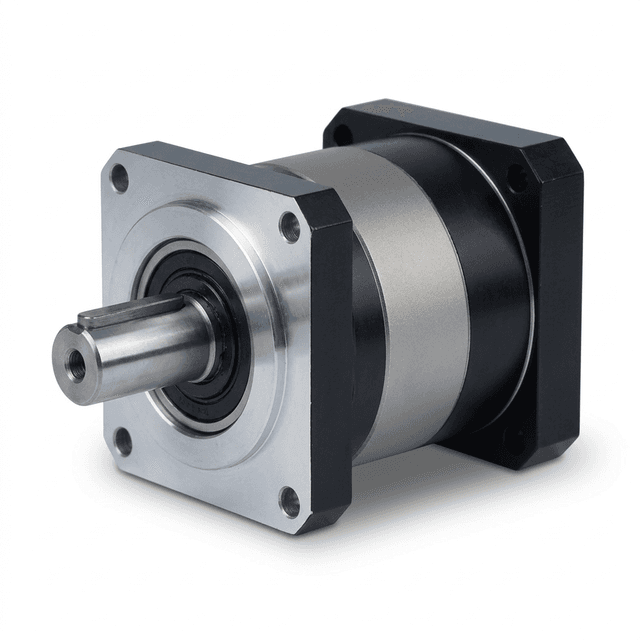

| NEMA 34 Gearhead Compatibility | OEM teams prioritizing torque margin, durability, and predictable commissioning outcomes. | Torque Reserve: Design margin set by dynamic duty | Adequate reserve protects reliability during acceleration bursts and disturbance loads. |
| NEMA 42 Gearhead Compatibility | Procurement and engineering teams running high-power programs with strict reliability and delivery expectations. | Program Validation Gate: Defined by prototype and pilot acceptance plan | Clear gates reduce ambiguity between engineering intent and procurement release. |
Pair frame-size compatibility checks with inertia and lifecycle decision criteria.
Use load profile, torque reserve, and thermal margin to decide frame path.
Estimate reflected inertia ratio early to avoid unstable tuning windows.
Resolve packaging and load-path choices before finalizing interface drawings.
